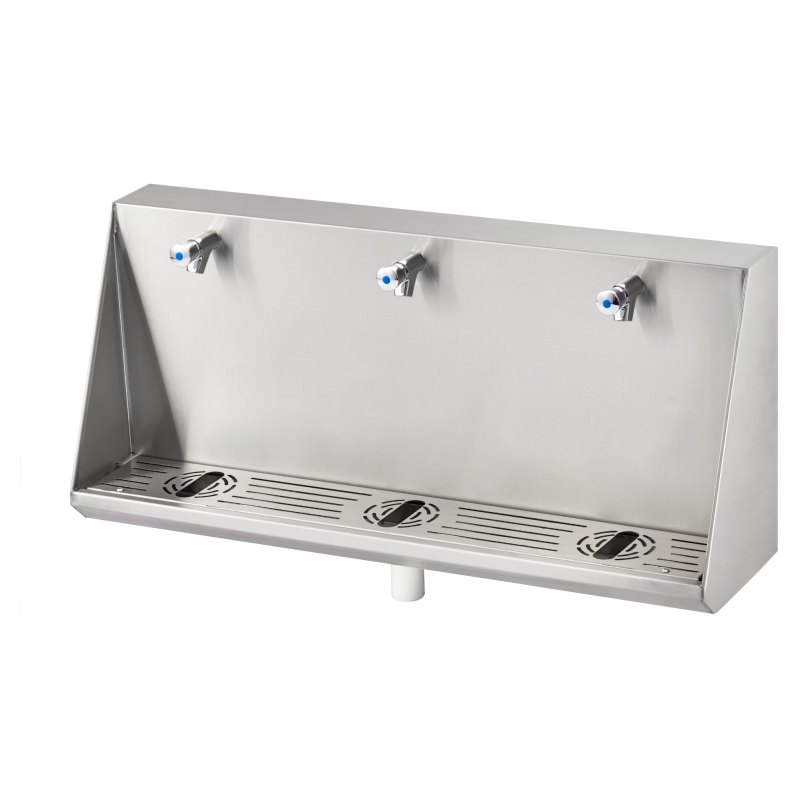

Multi user water bottle filler unit

Multi Bottle Filling Trough (Non-Chilled)

Product Code: MBFT

Stainless Steel Bottle Filling unit for multiple users with WRAS approved taps
£736.80 inc VAT£614.00 ex VAT

updown
£736.80 inc VAT£614.00 ex VAT
add to compare

If you require quick hydration for more than one student then our multi bottle filling station with WRAS approved taps is the answer.  Our purpose made bottle filler has been designed to be easily installed and includes a fixed grating to avoid trapped fingers and a fully enclosed front edge. Press button taps make it easy to operate and the on / off function saves water rather than time flow taps which will run on after the bottle is filled. Provide student hydration whilst helping save water and reducing single use plastic bottle waste.

Delivery

In stock usually 3 - 5 working days

Tech specs

WRAS approved push button taps
On / off taps to conserve water
Fixed grating which is removable for ease of cleaning
1.5 inch waste fitting
Length: 1000mm
Projection: 245mm
Height: 446mm
To ensure the proper functioning and longevity of this unit, a Y-strainer or filter must be installed as part of the water supply system. The Y-strainer / filter is essential for protecting the internal components and maintaining the correct flow characteristics of the tap. Failure to install a Y-strainer or filter will result in the warranty being void.

Related Products

As well as single use wall mounted bottle fillers we also offer trough style multi bottle fillers

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

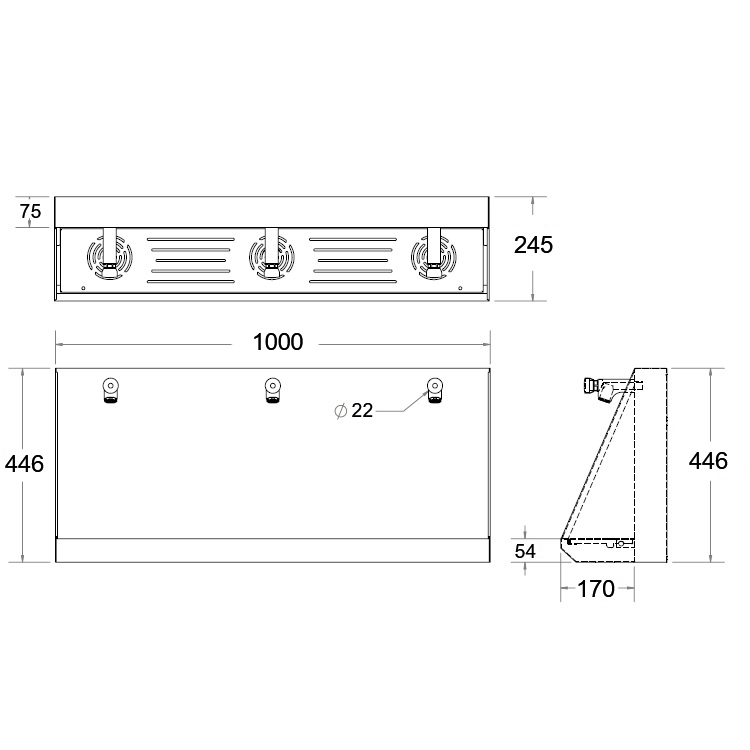

mbft-dims-new

Delivery

From stock usually 1 to 2 working days.

Delivery Times

Delivery times stated on the website are indicative of the average time it takes to deliver each product. All delivery times are based on working days and do not include weekends or Bank Holidays.
For remote areas sometimes deliveries may take a little longer than specified.
We will contact you if there are any known delays in the delivery times on your order.

Delivery Method

All orders are despatched by the most suitable and economic method.
If you have ordered several items they may arrive separately to make sure they are delivered by the quickest and most appropriate method, and to guarantee you get the best prices.
Please note our carriers do not offer fixed time slots, and due to time constraints are not able to telephone before delivering.



Outdoor Installation Notice: Selected drinking water units are suitable for external installation when adequately protected from extreme weather. Freeze protection with isolation and draining are essential in cold weather, while prolonged direct sunlight or extreme heat may temporarily affect operation. We recommend installing units in a shaded location where practical. Please see our Outdoor Installation Guidance for full details.

Architectural Specification Text

The following specification wording is provided for architects, consultants and building specifiers to copy into building specifications, schedules of work and project documentation. It includes the product reference, materials, dimensions and applicable standards.

Multi-User Stainless Steel Bottle Filling Trough - MBFT

Uniclass: Pr_40_70_15_24 - Drinking fountains

Product Specification

1. Description: Three-user wall mounted stainless steel drinking water bottle filling trough incorporating three independently operated push-button taps and an integral drainage area with removable lockable grating. Designed for simultaneous refilling of reusable drinking water bottles in schools, colleges, leisure centres, gyms, workplaces and other public or commercial buildings.

2. Supplier: Washware Essentials Ltd.

3. Contact details:
3.1. Telephone: 01275 400456
3.2. Website: www.washwareessentials.co.uk

4. Product reference: MBFT.

5. Form: Three-user wall mounted bottle filling trough incorporating an integral vertical splashback, three bottle filling taps, horizontal drainage area and removable lockable grating. Designed to accommodate simultaneous bottle filling at three positions.

6. Materials:
6.1. Trough material: Grade 304 stainless steel.
6.2. Material thickness: 1.2mm.
6.3. Construction: Formed stainless steel trough incorporating an integral splashback and drainage area.
6.4. Grating: Removable and lockable grating to facilitate cleaning and discourage tampering.

7. Dimensions:
7.1. Overall length: 1000mm.
7.2. Overall front-to-back projection: 245mm.
7.3. Overall height: 446mm.
7.4. Number of bottle filling positions: Three.
7.5. All dimensions nominal; confirm actual product dimensions and fixing positions before installation.

8. Waste outlet:
8.1. Waste fitting: 1.5 inch (approximately 38mm) waste fitting supplied.
8.2. Drainage arrangement: Integral trough drainage area serving all three bottle filling positions.
8.3. Grating: Removable lockable grating providing access for cleaning.
8.4. Waste connection: Connect to a suitable trapped building drainage system.

9. Mounting:
9.1. Installation type: Wall mounted.
9.2. Wall construction: Suitable structural wall or supporting framework providing adequate fixing strength.
9.3. Fixings: Use suitable fixings appropriate to the supporting wall construction.
9.4. Installation height: Set at an appropriate height for intended users and applicable accessibility requirements.
9.5. Service access: Allow access to water supply connections, waste fitting and removable grating for cleaning and maintenance.

10. Water supply:
10.1. Supply: Potable mains drinking water.
10.2. Water temperature: Non-chilled, dispensing water at incoming mains temperature.
10.3. Supply protection: Y-strainer or suitable water filter mandatory on incoming water supply.
10.4. Water connections: Connect all three supplied taps to the potable water supply in accordance with the supplier's installation instructions.
10.5. Water supply capacity: Provide adequate flow and pressure to serve all three bottle filling taps when operated simultaneously.

11. Bottle filling taps:
11.1. Quantity: Three bottle filling taps supplied.
11.2. Operation: Independent manual push-and-hold button control for each filling position.
11.3. Activation: Press and hold the button to dispense water; release to stop the flow.
11.4. Function: User-controlled water dispensing for simultaneous filling of three reusable drinking water bottles.
11.5. Water conservation: Release-to-close operation reduces unnecessary water consumption.
11.6. Tap approval: All three supplied push-button taps are WRAS approved.

12. Installation: Install in accordance with the supplier's installation instructions and project requirements. Secure the trough to a suitable structural wall using appropriate fixings, ensuring adequate support for the unit and anticipated use. Connect all three WRAS-approved push-button taps to a potable mains water supply capable of serving simultaneous operation. Connect the supplied 1.5 inch waste fitting to a suitable trapped drainage system. A Y-strainer or suitable water filter must be installed on the incoming water supply to protect the taps and maintain correct operation; failure to install this protection will invalidate the product warranty. Allow access for removal and cleaning of the lockable grating. Confirm actual product dimensions, fixing positions and service connections before installation.

13. Applicable standards and regulations:
13.1. Water fittings: All three supplied push-button bottle filling taps are WRAS approved.
13.2. Water supply: Water supply connections and installation to comply with the applicable requirements of the Water Supply (Water Fittings) Regulations 1999, including Regulation 4.
13.3. Backflow protection: Provide appropriate backflow protection in accordance with applicable UK water fittings regulations and relevant British Standards, including BS EN 1717 where applicable.
13.4. Accessibility: Installation height and positioning to be assessed against applicable accessibility requirements, including Approved Document M where relevant.
13.5. Product certification: WRAS approval applies to the individual taps and does not establish independent approval of the complete bottle filling trough assembly.
