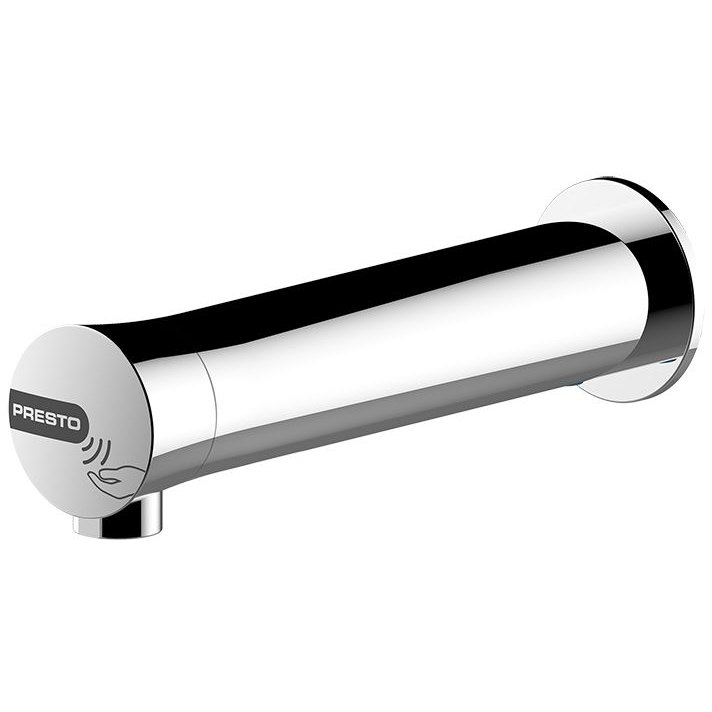

Wall / Panel Mounted Sensor Tap - Battery supply

These wall mounted sensor operated taps have an infrared sensor with a close detection rate to prevent false activation and a 7 second time flow operation to keep the tap running if hands move out of the sensor range. The battery supply means no electricians are required for the installation and batteries should last 3 years under normal operation.

Delivery

From stock typically 1 to 2 working days

Tech Spec

7 seconds run time once activated
The time flow function helps to resolve the problem of the tap turning on and off when the users hands leave the sensor area
The sensor area is set close to tap to prevent reflections from basins triggering the water flow
Chrome plated brass body
Flow rate limited to 1.9 litres per minute
High quality anti limescale aerator
Single supply for cold or premixed water
Lithiuim battery supplied - will last approx 3 years under normal use
Anti overflow security run time set to 30 seconds
Hygiene autoflush function set to run for 30 seconds 24 hours after last use

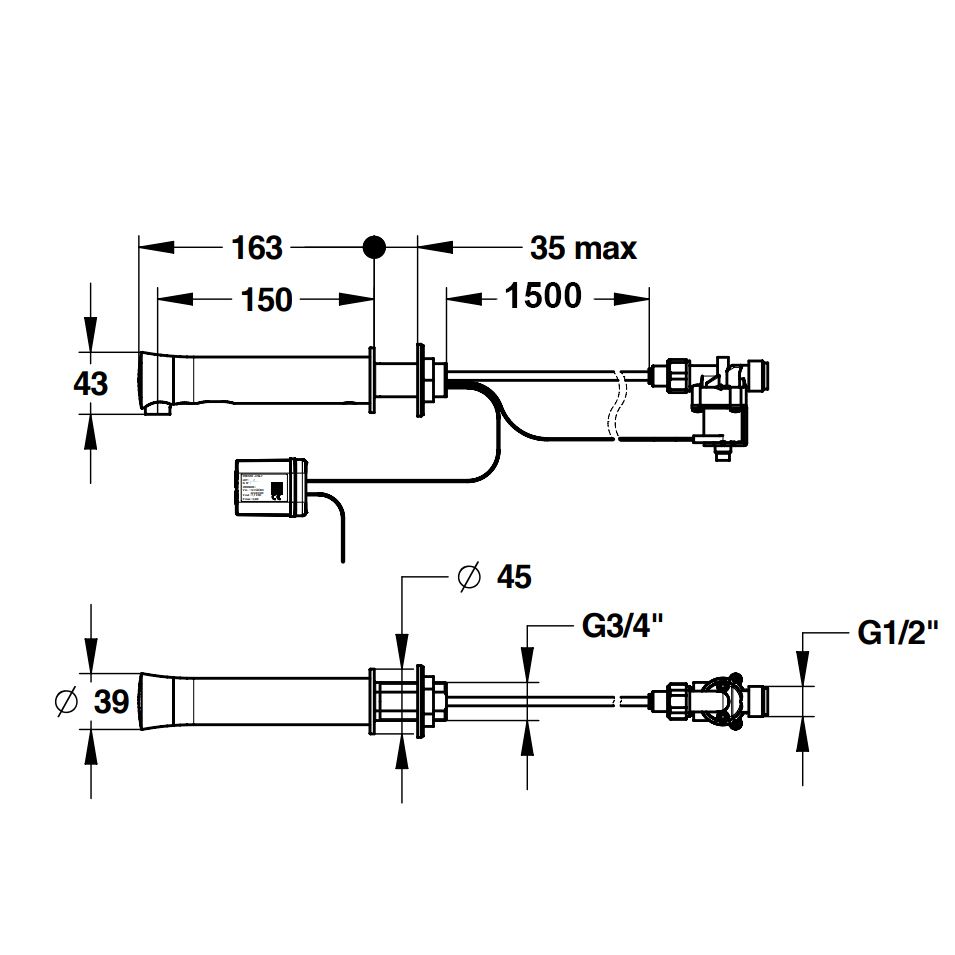

Tap hole size 28mm to 30mm
1 metre extension leads provided for battery and solenoid connections
1.5 metre water inlet tube which can be cut to suit installation
WRAS approved
CE marked
10 year warranty (excludes battery)

Water Pressure

Min operating pressure required 1 Bar
Max static water pressure 5 Bar

Flow Rates

Related Products

Mains supply model
TMV3 mixing valve (regulations state these should be fitted close to the tap and ideally one per tap).

Warranty

Warranty is 10 years from supply and is limited to replacement parts or a complete replacement tap. Water filters / Y strainers will need to have been fitted to comply with warranty. Diagnosis and fault finding will need to be undertaken over the phone with the manufacturers before replacement parts or complete taps are supplied. Warranty is strictly limited to parts / replacements and does not cover labour, time or any other consequential charges.
