Outdoor Bottle Filling Station

Product Code: M-OBF

Outdoor pedestal bottle filling stations with push button operation
£1,962.00 inc VAT£1,635.00 ex VAT
Choose Option

£1,962.00 inc VAT£1,635.00 ex VAT

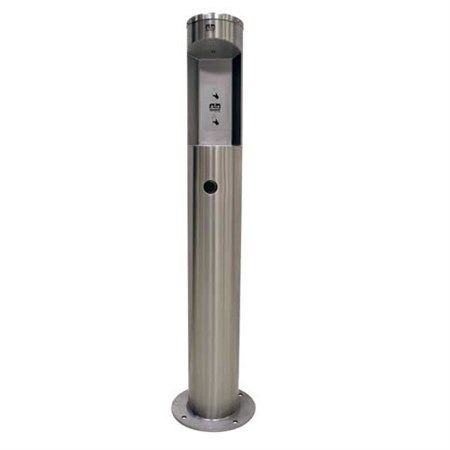

These heavy duty outdoor bottle filling units are available in stainless steel or a green powder coated finish. The heavy duty construction ensures they are suitable for outdoor use and will withstand a lot of use.

Press button operation with internal solenoid valve requiring 6AA batteries. The internal bottle filling recess will take large water bottles. Supplied with heavy duty anchor bolts with the option of an in ground anchor plate to cast into your concrete base. Waste water can either be connected to you waste water system or discharged into a soakaway. Please check that your local water board accepts soakaways beforehand. The outdoor bottle filler is environmentally friendly providing a fast, convenient way to obtain drinking water, and promotes the use of refillable water bottles.


Stainless steel or green finish typically 3 to 4 working days

Tech Specs

Height: 1327mm high
Height to bottle filling recess: 933mm
Diameter: 181mm diameter

Stainless steel or green powder coated finish
Font push button
Laminar flow outlet to reduce splashing
Requires 6 x AA batteries
Pre drilled fixing flange with four holes
Supplied with ground anchor bolts
Rear access panel with security screws.

Please ensure that these are drained down and isolated in cold weather to avoid damage to the unit.

Compliant Regulations

All internal water fittings are WRAS approved
Full approval details for your Water Board are downloadable here

Related Products

Inground anchor plate
Powder coated stainless steel in red or blue specially ordered in 12 to 14 working weeks

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

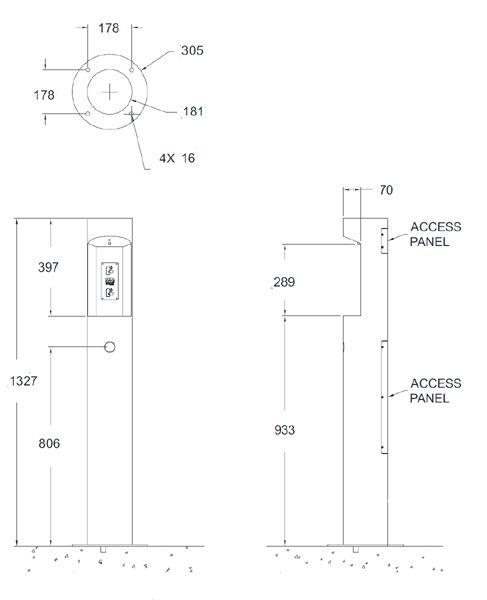

outdoor bottle filler dimensions


Green & stainless steel finish usually in stock for 3 to 4 working days delivery (Please check before ordering).
Red, blue or special finishes to order usually 12 to 14 weeks.
Due to the manufacturing and import times which are out of our control the lead times are a guideline only and are not guaranteed.
