Behind The Mirror Hand Dryer Unit

Product Code: BTM-HD

Mirrored wall cabinet with hand dryer and liquid soap dispenser
contact us

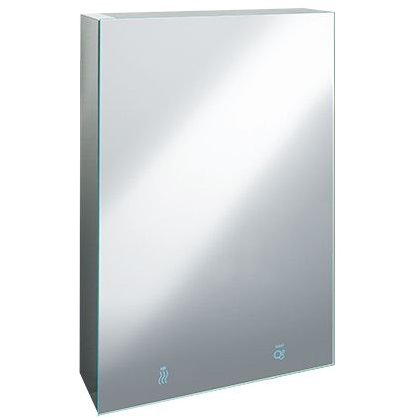

The Behind the Mirror (BTM) cabinet system from ASI provides a concealed hand dryer and soap dispenser behind a 6mm thick mirrored door

The cabined housing the hand dryers and soap dispensers are manufactured from grade 304 stainless steel with a top hinged mirrored door. Twin damped gas springs to the door assist opening and closing with a lock in the bottom.

The mirror incorporates two backlit icons which indicate the location of soap and hand drying functions provided from the bottom of each module.

Delivery

To order usually 4 to 5 working weeks

Tech Spec

Width: 600mm
Height: 900mm
Depth: 192mm
Grade 304 stainless steel cabinet
6mm thick frameless tempered glass with pencil edges and eased corners
The stainless steel cabinet conceals a hands-free automatic liquid soap dispenser with a 1.5 litre capacity and a high-speed hand dryer (208V to 240V) equipped with a HEPA filter
The door has a stainless steel intermediate stiffener and stainless steel back plate with integral welded support mounts, hinge and lock keeper
The mirrored door is attached to the cabinet using a full width 4.8mm diameter concealed piano hinge
Locked using a tumbler lock and key
Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking
Mirror backlit icons operate on 12V DC transformer
Quad (double-duplex) outlet (by others) required in back of cabinet for hand dryer and transformers
208V to 240V hand dryer on left hand side
Hands free 1.5 litre liquid soap dispenser with 6V AC/DC transformer on right hand side.
Soap viscosity Range (mPa·s or cP): 100 – 3k
Soap pH Range: 5.5 ~ 8.5

Related Products

Similar unit with paper towel dispenser and soap dispenser
Matching filler modules are available as spacers between or at end of cabinets sized 375mm and 591mm

Prices

Due to the nature of the products and the amount of options available please contact us for prices by email on enquiries@washwareessentials.co.uk or by phone on 01275 400456.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
