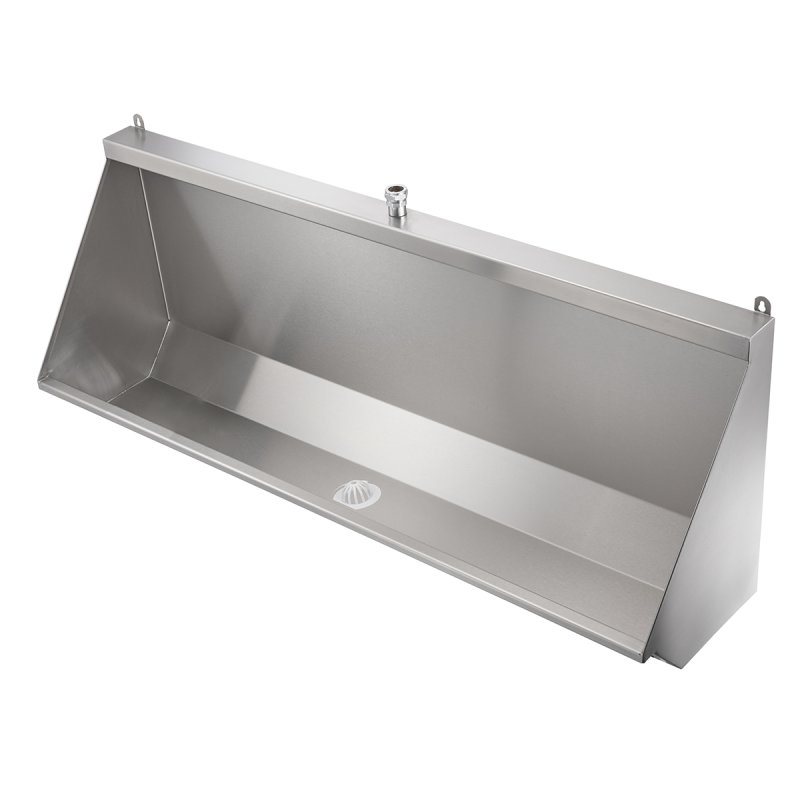

300mm Projection Wall Hung Stainless Steel Urinal
Product Code: UC-300
Wide 300mm front to back channel.
Description
Durable Stainless Steel Trough Urinal – Safer, Cleaner School Washrooms
Designed specifically for the rigours of the school environment, our wall-hung stainless steel trough urinal features a wider 300mm deep bowl to better contain splashes and reduce water on the floor – making your school washrooms safer and easier to maintain.
With five length options – 1200mm, 1500mm, 1800mm, 2000mm, and 2400mm – this robust urinal includes a central 2" waste outlet, plastic cistern, and a stainless steel downpipe, ensuring long-lasting performance and easy installation. A practical choice for schools prioritising hygiene, safety, and durability in student facilities.
Delivery
Standard lengths: 900mm, 1200mm, 1500mm, 1800mm, 2000mm, and 2400mm with centre outlet, and top entry flush pipe connections
Typically 1 to 2 working days
Tech specs
Material: 1.2mm-thick stainless steel with satin finish body, 2mm thick ends
Five standard lengths: 1200mm, 1500mm, 1800mm, 2000mm and 2400mm
Depth (front to back): 300mm
Height (top to bottom): 465mm
Waste fitting: 50mm (2") plastic dome grated in centre position
Cistern: white plastic auto cistern
Downpipe: 22mm diameter
Each stainless steel trough urinal comes with a top entry downpipe connection as standard for an exposed centrally mounted plastic cistern and stainless steel downpipe.
Extras
Your stainless steel trough urinal can also be supplied with any of the following accessories:
Flush controller
Marnic Water Watch
Related products
Why not complete your school washroom with one of our stainless steel toilets? or alternatively visit our school toilets page to see the white china range.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
Dimensions
Delivery
Delivery
From stock usually 1 to 2 working days.
Delivery Times
Delivery times stated on the website are indicative of the average time it takes to deliver each product. All delivery times are based on working days and do not include weekends or Bank Holidays.
For remote areas sometimes deliveries may take a little longer than specified.
We will contact you if there are any known delays in the delivery times on your order.
Delivery Method
All orders are despatched by the most suitable and economic method.
If you have ordered several items they may arrive separately to make sure they are delivered by the quickest and most appropriate method, and to guarantee you get the best prices.
Please note our carriers do not offer fixed time slots, and due to time constraints are not able to telephone before delivering.
Specifier Text
Architectural Specification Text
The following specification wording is provided for architects, consultants and building specifiers to copy into building specifications, schedules of work and project documentation. It includes the product reference, materials, dimensions and applicable standards.
Wide Channel Stainless Steel Wall Hung Trough Urinal - UC-300
Uniclass: Pr_40_20_93_82 - Wall-hung urinals
Product Specification
1. Description: Wall mounted stainless steel communal trough urinal incorporating a wide 300mm front-to-back channel, designed for commercial, public and industrial washrooms.
2. Supplier: Washware Essentials Ltd.
3. Contact details:
3.1. Telephone: 01275 400456
3.2. Website: www.washwareessentials.co.uk
4. Product reference: UC-300.
5. Form: Wall mounted communal trough urinal with wide channel design, concealed horizontal sparge pipe flushing system, exposed centrally positioned cistern and downpipe, and central waste outlet.
6. Materials:
6.1. Urinal material: Grade 304 stainless steel.
6.2. Material thickness: 1.2mm.
6.3. Manufacture: UK manufactured.
7. Dimensions:
7.1. Length: As specified, 1200mm, 1500mm, 1800mm, 2000mm or 2400mm.
7.2. Urinal height: 465mm.
7.3. Front-to-back projection: 300mm.
8. Waste outlet:
8.1. Outlet position: Centrally positioned.
8.2. Waste size: 50mm (2").
8.3. Waste fitting: Plastic domed grated waste fitting supplied as standard.
9. Mounting: Wall mounted using suitable fixings and structural support, allowing access for cleaning beneath the urinal.
10. Flushing cistern:
10.1. Standard cistern: White plastic automatic flushing cistern.
10.2. Position: Centrally mounted above the urinal.
10.3. Downpipe: Exposed stainless steel downpipe supplied as standard.
11. Flushing system:
11.1. Distribution: Vandal-resistant concealed horizontal sparge pipe flushing system.
11.2. Standard configuration: Top entry flushing connection.
11.3. Optional controls: Marnic Water Watch urinal flush controller where specified.
12. Installation: Install in accordance with the supplier's installation instructions and project requirements. Provide suitable wall fixings, structural support, water supply, central waste connection and access for servicing the flushing system. Confirm actual product dimensions before installation or fabrication of associated components.
13. Applicable standard: Manufactured in accordance with BS EN 13407:2015+A1:2018 - Wall-hung urinals. Functional requirements and test methods.
Product Attribute
