Time Flow Tap With Temperature Control

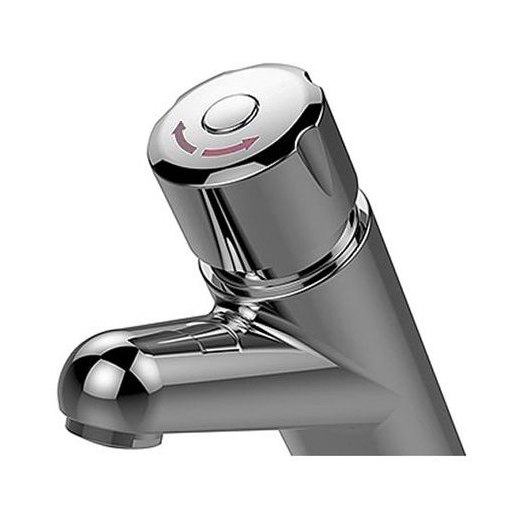

Chrome plated mono bloc press button non-concussive time flow tap with adjustable temperature control. The time flow operation will run for approximately 15 seconds preventing the waste of water, whilst simply turning the tap head will adjust the water temperature. We recommend the use of a TMV3 thermostatic mixing valve to limit the maximum water temperature. A flow limiter is fitted to the tap to limit the water flow to less than 3.5 litres per minute for full BREEAM compliance, coupled with the self closing action mean this tap is an ideal choice for schools and colleges.

Delivery

Typically 3 to 5 working days

Tech Spec

Runs for 15 seconds at 1 Bar water pressure
Closes automatically for water saving
Rotating the push button increases or decreases the temperature
Supplied as single tap with hot and cold water supply
1 year’s manufacturer’s warranty
35mm tap hole required
Max Inlet Pressure 5 Bar
Min Inlet Pressure 1 Bar
Max inlet temperature 65 degrees

Related Products

We can supply TMV3 mixing valves to limit the maximum hot water temperature, and a full range of time flow basin taps.
