Toilet Cubicles in a Box - Between Walls
Product Code: CUBICLE-BW
Description

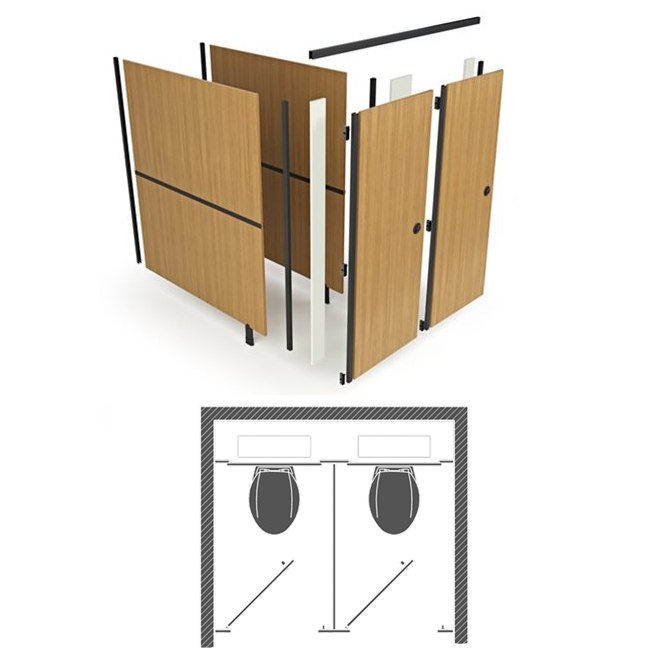

These cubicles are specifically designed to fit between two end walls, with each cubicle accommodating a maximum length of 1060mm and minimum width of 750mm. They are available to order online in configurations of up to eight cubicles.
Manufactured from MFC (melamine faced chipboard), the cubicles come complete with all doors, pilasters, partitions and necessary cubicle hardware (screws and wall plugs will not be included). They are available in 4 laminate colours as standard, Blue, Light Grey, Dark Grey, Warm Oak. You can mix and match your colours from the doors, pilasters and partitions. All fittings are supplied in dark grey and include faceplates, hinges, pedestal feet, wall channels, and H sections, with additional fittings available on request. The pilasters come with a square edge, finished with a matching 1mm PVC lipping.
They are delivered in standard sizes and clearly labelled, allowing the panels and doors to be cut to size on site to suit your exact dimensions, with all cut edges neatly concealed using the supplied dark grey continuous channels. The doors can be installed to open either inward or outward. The standard floor clearance for the toilet cubicle is 100mm, with a total height of 1950mm, (including the floor clearance).
Delivery
Typically 3 to 5 working days.
Delivery will be arranged to your site on a pallet to reduce the risk of damage.
Tech Spec
Maximum cubicle width = 1 at 1060mm, 2 at 2120mm, 3 at 3180mm, 4 at 4240mm, 5 at 5300mm, 6 at 6360mm, 7 at 7420mm and 8 at 8480mm.
Door - 1850mm x 900mm
Pilaster - 1850mm x 220mm.
Partition halves (2 per panel) - 925mm high x 1800mm Deep.
What's Included
Doors.
Pilasters.
Partitions.
UPVC door cap and wall channels (dark grey).
Aluminium head rail (dark grey).
UPVC H Section (dark grey).
Polycarbonate indicator bolt.
Outward keep.
Hinges (dark grey).
Toilet roll holder (dark grey).
Coat Hook (dark grey).
Pedestals (dark grey).
Screws, plugs and channel through fixings.
DocM Building Regulations 2004
All cubicles must be installed in compliance with current building regulations including DocM. For example, the first cubicle in a washroom should be designed to meet ambulant specifications and standard cubicles should allow for a 450mm diameter manoeuvring space between the WC pan and the sweep of the door. It is the responsibility of installers and building owners to ensure that washrooms comply with Document M, where applicable.
Please note that the above is examples and do not constitute a complete list of all regulations.
Disclaimer and Returns
Toilet cubicles are sold exclusively as commercial products to trade customers and are not eligible for returns or cancellations. It is the customer's responsibility to ensure the cubicles purchased comply with the latest building and DocM regulations.
Washware Essentials Ltd will not be held liable for ensuring the selected products meet specific site regulation requirements.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
