Toilet Cubicles in a Box - Free Standing
Product Code: CUBICLE-FS
Description
The cubicles are designed to fit against a back wall with finished end panels at both ends with a maximum length of 2000mm and a minimum width of 750mm per cubicle. They are available to order online in ranges of up to 8 cubicles.

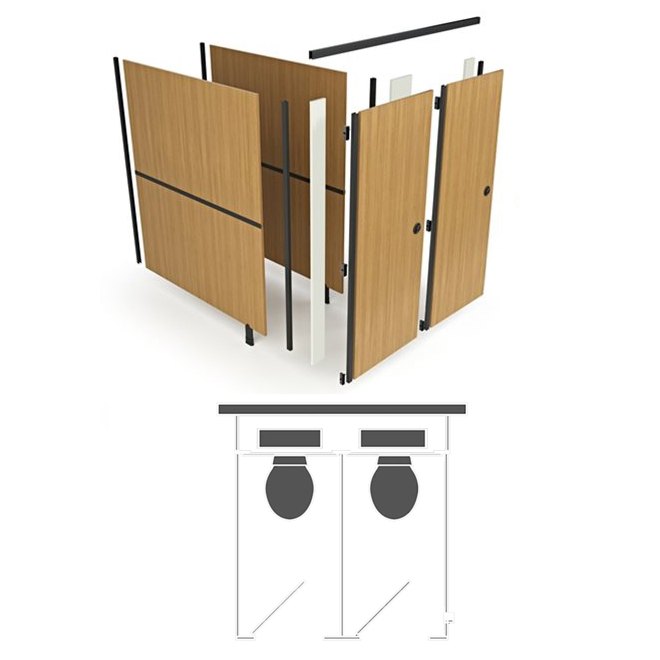

These cubicles are built using high-quality MFC (melamine-faced chipboard) and are delivered with all primary components required for installation—doors, partitions, pilasters, and standard cubicle hardware (note: screws and wall plugs are not provided). Choose from four standard laminate colour options: Blue, Light Grey, Dark Grey, and Warm Oak. You can mix colours across the doors, pilasters, and partitions to create a combination that suits your style.
The included hardware comes in a dark grey finish and features items such as hinges, faceplates, pedestal feet, wall channels, and H-sections. Additional accessories are available upon request. Pilasters are manufactured with a square edge and finished with a 1mm matching PVC lipping for a professional and cohesive appearance.
Each unit is supplied in standard sizes, with clearly labelled panels to make installation simple. Panels and doors can be trimmed on site to suit your specific measurements, and continuous dark grey channels are provided to conceal any cut edges for a neat finish. Doors can be fitted to open either inwards or outwards, depending on your preference.
The system includes a 100mm floor clearance, and the overall cubicle height is 1950mm, including that clearance.
Delivery
Fast Delivery - Typically 3 to 5 working days.
Delivery will be arranged to your site on a pallet to reduce the risk of damage.
Tech Spec
Maximum cubicle width = 1 at 1060mm, 2 at 2120mm, 3 at 3180mm, 4 at 4240mm, 5 at 5300mm, 6 at 6360mm, 7 at 7420mm and 8 at 8480mm.
Door - 1850mm x 900mm
Pilaster - 1850mm x 220mm.
Partition halves (2 per panel) - 925mm high x 1800mm Deep.
What's Included
Doors.
Pilasters.
Partitions.
UPVC door cap and wall channels (dark grey).
Aluminium head rail (dark grey).
UPVC H Section (dark grey).
Polycarbonate indicator bolt.
Outward keep.
Hinges (dark grey).
Toilet roll holder (dark grey).
Coat Hook (dark grey).
Pedestals (dark grey).
Screws, plugs and channel through fixings.
DocM Building Regulations 2004
All cubicles must be installed in compliance with current building regulations including DocM. For example, the first cubicle in a washroom should be designed to meet ambulant specifications and standard cubicles should allow for a 450mm diameter manoeuvring space between the WC pan and the sweep of the door. It is the responsibility of installers and building owners to ensure that washrooms comply with Document M, where applicable.
Please note that the above is examples and do not constitute a complete list of all regulations.
Disclaimer and Returns
Toilet cubicles are sold exclusively as commercial products to trade customers and are not eligible for returns or cancellations. It is the customer's responsibility to ensure the cubicles purchased comply with the latest building and DocM regulations.
Washware Essentials Ltd will not be held liable for ensuring the selected products meet specific site regulation requirements.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
