Toilet Cubicles in a Box - Inline Between Walls

These cubicles are suitable for inline between walls offering a maximum length of 2000mm and a minimum width of 750mm per cubicle. They can be ordered online as a single cubicle.

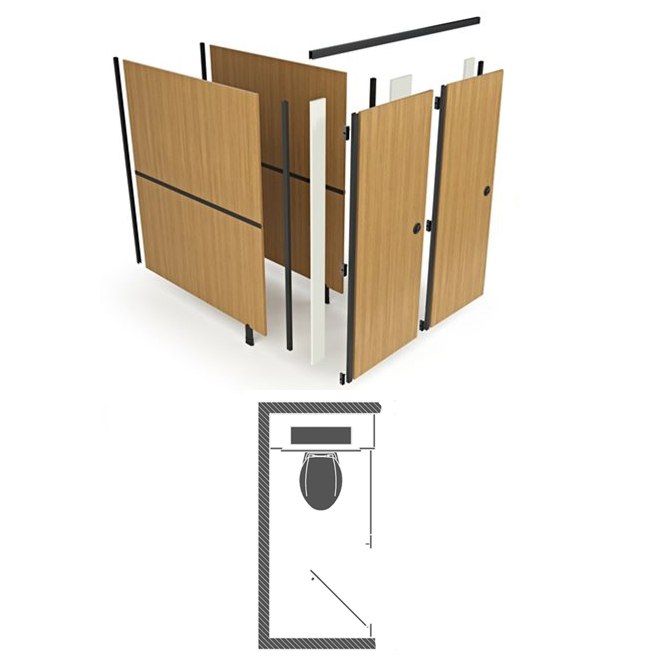

Made from durable melamine-faced chipboard (MFC), these toilet cubicles are delivered with all the main components needed for installation—doors, pilasters, partitions, and core hardware. Please note that wall plugs and screws are not included. Choose from four standard laminate finishes: Blue, Light Grey, Dark Grey, and Warm Oak. You can also personalise the look by mixing colours across the different elements.

The included fittings, finished in dark grey, consist of faceplates, hinges, pedestal feet, H-sections, and wall channels. Additional components can be requested if required. Pilasters are designed with a square edge and are finished with a coordinating 1mm PVC lipping for a refined appearance.

Supplied in standard dimensions, the cubicles are easy to adapt on site. Panels and doors can be trimmed to fit your specific layout, and dark grey continuous channels are provided to cover any exposed cut edges for a neat result. Doors are versatile and can be installed to open either inward or outward, depending on your space needs.

Each cubicle has a floor clearance of 100mm and stands at a total height of 1950mm, including the clearance.

Delivery

Fast Delivery - Typically 3 to 5 working days.

Delivery will be arranged to your site on a pallet to reduce the risk of damage.

Tech Spec

Maximum cubicle width = 1 at 2000mm (min 750mm width).
Door - 1850mm x 900mm
Pilaster - 1850mm x 220mm.
Partition halves (2 per panel) - 925mm high x 1800mm Deep.

What's Included

Doors.
Pilasters.
Partitions.
UPVC door cap and wall channels (dark grey).
Aluminium head rail (dark grey).
UPVC H Section (dark grey).
Polycarbonate indicator bolt.
Outward keep.
Hinges (dark grey).
Toilet roll holder (dark grey).
Coat Hook (dark grey).
Pedestals (dark grey).
Screws, plugs and channel through fixings.

DocM Building Regulations 2004

All cubicles must be installed in compliance with current building regulations including DocM. For example, the first cubicle in a washroom should be designed to meet ambulant specifications and standard cubicles should allow for a 450mm diameter manoeuvring space between the WC pan and the sweep of the door. It is the responsibility of installers and building owners to ensure that washrooms comply with Document M, where applicable.

Please note that the above is examples and do not constitute a complete list of all regulations.

Disclaimer and Returns

Toilet cubicles are sold exclusively as commercial products to trade customers and are not eligible for returns or cancellations. It is the customer's responsibility to ensure the cubicles purchased comply with the latest building and DocM regulations.

Washware Essentials Ltd will not be held liable for ensuring the selected products meet specific site regulation requirements.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
