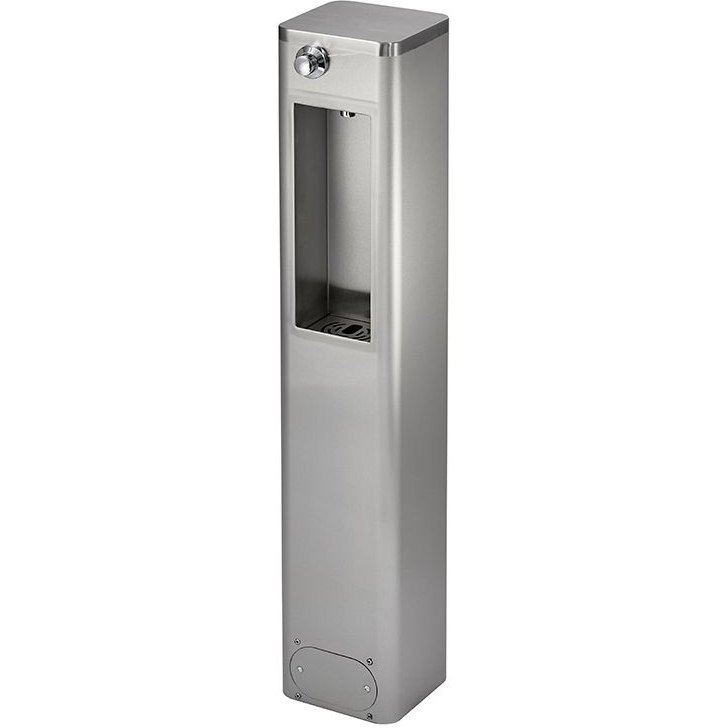

Pillar Floor Standing Bottle Filler (Non-Chilled)
Product Code: PBF-A
Description
These stylish cost-effective units are perfect for saving space in your school. The rounded radius front corners and attractive satin finish make them ideal for use in schools, sixth forms and colleges.
Convertible to a wall mounted fountain by removing the back panel.
Constructed from hardwearing stainless steel, these bottle fillers come with WRAS approved bottle filling faucet to prevent the vandalism and accidental damage that can occur with swan neck designs. Each unit is fitted with a flexible waste pipework and 1/2 inch female connection on the inlet.
Delivery
Typically 1 to 2 working days
Tech specs
Material: satin finish stainless steel
Width: 200mm
Depth (front to back): 200mm
Height (top to bottom): 1070mm
To ensure the proper functioning and longevity of this unit, a Y-strainer or filter must be installed as part of the water supply system. The Y-strainer / filter is essential for protecting the internal components and maintaining the correct flow characteristics of the tap. Failure to install a Y-strainer or filter will result in the warranty being void
This unit does not have a built-in chilling system and will dispense water at the incoming mains water temperature, remote chillers are available
Bottled water: the high price of convenience
Bottled water may be convenient, but even the cheapest brands are hugely overpriced compared to water from a water fountain or bottle filling station. Nor is bottled water of a higher quality - in fact, most of it is just purified tap water, meaning that most of the money you pay for it goes on the packaging.
The plastic bottles themselves are also harmful to the environment and are a constant source of litter in school playgrounds.
Related products
Our combined bottle filler and drinking fountains are also available in junior dimensions, perfect for infant schools, nurseries and creches.
We also sell drinking fountains and bottle fillers as separate units. From wall-mounted drinking fountains to recessed bottle fillers, we’re sure to have a drinking water solution that meets the requirements of your schools. Visit our drinking fountains page to see the whole range.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

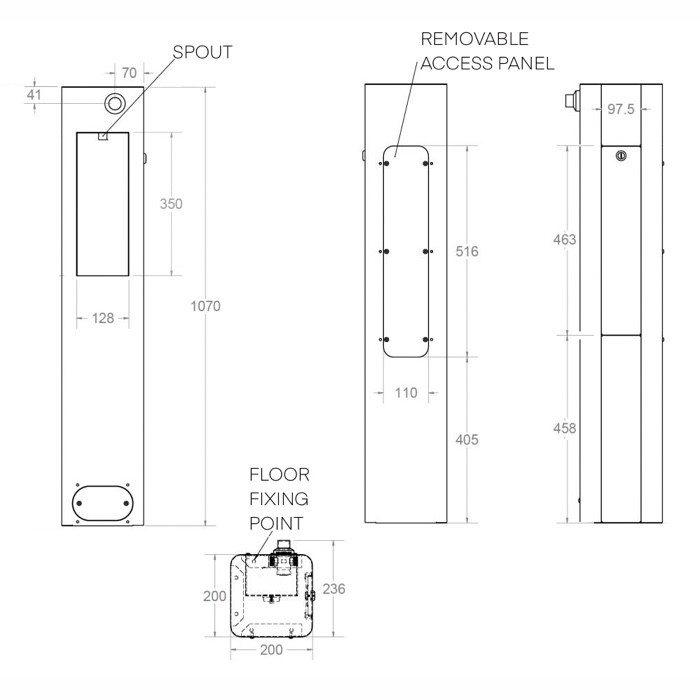

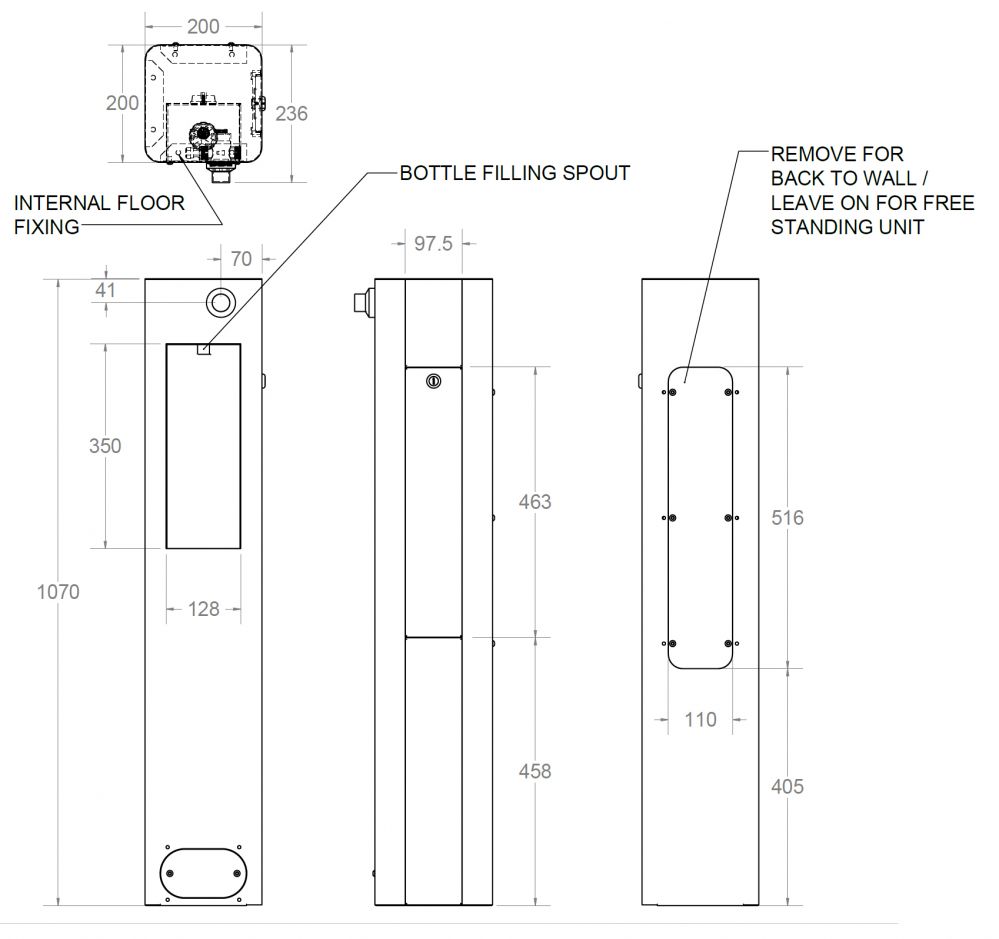

Dimensions

Delivery
Delivery
From stock usually 1 to 2 working days.
Delivery Times
Delivery times stated on the website are indicative of the average time it takes to deliver each product. All delivery times are based on working days and do not include weekends or Bank Holidays.
For remote areas sometimes deliveries may take a little longer than specified.
We will contact you if there are any known delays in the delivery times on your order.
Delivery Method
All orders are despatched by the most suitable and economic method.
If you have ordered several items they may arrive separately to make sure they are delivered by the quickest and most appropriate method, and to guarantee you get the best prices.
Please note our carriers do not offer fixed time slots, and due to time constraints are not able to telephone before delivering.
Outdoor Installation Guide
Outdoor Installation Notice: Selected drinking water units are suitable for external installation when adequately protected from extreme weather. Freeze protection with isolation and draining are essential in cold weather, while prolonged direct sunlight or extreme heat may temporarily affect operation. We recommend installing units in a shaded location where practical. Please see our Outdoor Installation Guidance for full details.
Specifier Text
Architectural Specification Text
The following specification wording is provided for architects, consultants and building specifiers to copy into building specifications, schedules of work and project documentation. It includes the product reference, materials, dimensions and applicable standards.
Pillar Floor Standing Bottle Filler - PBF-A
Uniclass: Pr_40_70_15_24 - Drinking fountains
Product Specification
1. Description: Floor standing stainless steel drinking water bottle filling station with manually operated push button valve and laminar flow outlet, designed for refilling reusable drinking water bottles in schools, colleges, workplaces, leisure facilities and other public or commercial buildings.
2. Supplier: Washware Essentials Ltd.
3. Contact details:
3.1. Telephone: 01275 400456
3.2. Website: www.washwareessentials.co.uk
4. Product reference: PBF-A.
5. Form: Floor standing pillar-style drinking water bottle filling unit with rounded corners, integral bottle filling area, manually operated valve and enclosed internal plumbing. Suitable for freestanding installation or positioning against a wall with the rear panel removed.
6. Materials:
6.1. Housing material: Grade 304 stainless steel.
6.2. Material thickness: 1.2mm.
6.3. Construction: Enclosed stainless steel pillar housing with rounded corners.
6.4. Access: Lockable side access door and removable rear panel.
7. Dimensions:
7.1. Overall height: 1070mm.
7.2. Overall width: 200mm.
7.3. Overall front-to-back dimension: 200mm.
7.4. All dimensions nominal; confirm actual product dimensions before installation.
8. Waste outlet:
8.1. Waste fitting: 32mm waste fitting supplied.
8.2. Waste connection: Flexible waste pipe supplied.
8.3. Waste arrangement: Connection via internal plumbing compartment to site drainage.
9. Mounting:
9.1. Standard arrangement: Freestanding floor mounted pillar unit.
9.2. Alternative arrangement: Floor and wall mounting with removable rear panel.
9.3. Fixing provision: Integral floor and wall mounting points.
9.4. Installation surface: Suitable level floor with adequate structural support.
10. Water supply:
10.1. Supply: Potable mains drinking water.
10.2. Water temperature: Non-chilled, dispensing water at incoming mains temperature.
10.3. Supply protection: Y-strainer or suitable water filter mandatory on incoming water supply.
10.4. Optional equipment: Remote water chiller available separately where chilled drinking water is required.
11. Bottle filling valve:
11.1. Operation: Manual push button control.
11.2. Activation: Hand or forearm operated.
11.3. Outlet: Laminar flow drinking water outlet.
11.4. Internal components: Press button valve and internal water supply pipework supplied assembled.
11.5. Maintenance access: Lockable side access door providing access to internal plumbing connections and fixing points.
12. Installation: Install in accordance with the supplier's installation instructions and project requirements. Provide suitable floor support, potable mains water supply, waste connection and access for servicing. Secure the unit using the provided mounting points. A Y-strainer or suitable water filter must be installed on the incoming water supply to protect the valve and maintain correct operation; failure to install this protection will invalidate the product warranty. Where installed outdoors, provide appropriate protection against freezing and excessive heat, including isolation and draining during freezing conditions. Select an installation position and operating height appropriate for intended users and applicable accessibility requirements.
13. Applicable standards and regulations: Kiwa Regulation 4 approved product, independently assessed under the Kiwa UK Regulation 4 certification scheme for compliance with the relevant requirements of the Water Supply (Water Fittings) Regulations 1999. Water supply connections, backflow protection and installation to comply with applicable UK water fittings regulations and relevant British Standards. Kiwa approval documentation to be provided upon request.
