Floor Standing Trough Urinal Stainless Steel Floor Standing Trough Urinal Stainless Steel

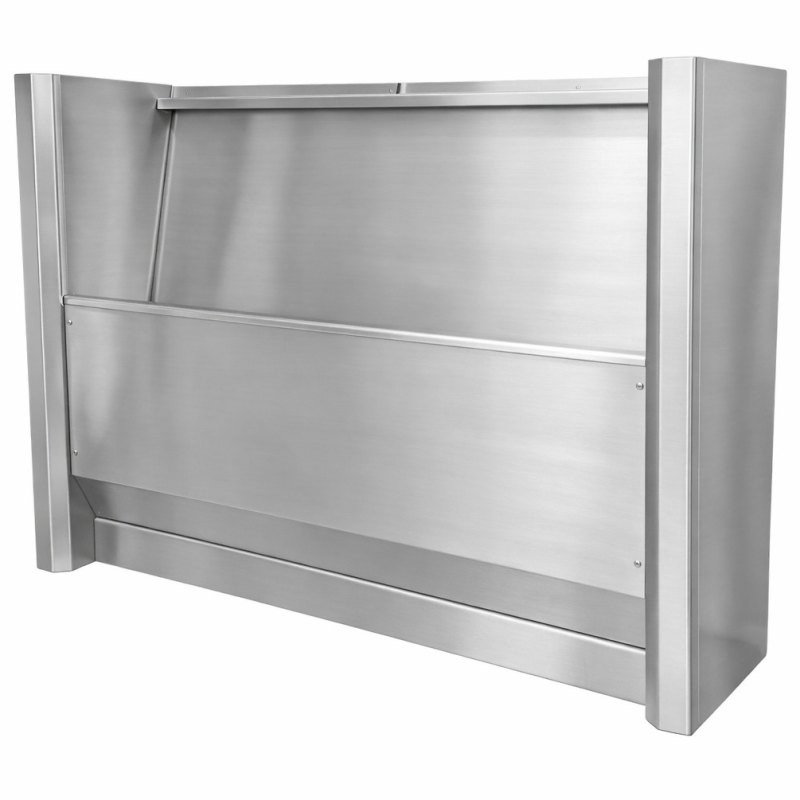

Floor Standing Trough Urinal Stainless Steel

Product Code: FSTU

Floor standing trough urinals in standard and purpose made sizes
from £1,126.80 inc VATfrom £939.00 ex VAT
Choose Option

updown
from £1,126.80 inc VATfrom £939.00 ex VAT
add to compare

FOC Delivery

Free delivery across your whole order when a urinal is ordered, please note this is for items with standard delivery to the UK Mainland only.

Qualifying products:
Stainless Steel Trough Urinals 900mm To 2400mm Long
Stainless Steel Vandal Resistant Trough Urinal Bundle
Classic Stainless Steel Wall Hung Urinals 900mm To 2400mm Long
1800mm Trough Urinal - Back or Top Entry
Floor Standing Slab Urinal
Stainless Steel Floor Recessed Slab Urinal

Expires 31st December 2026

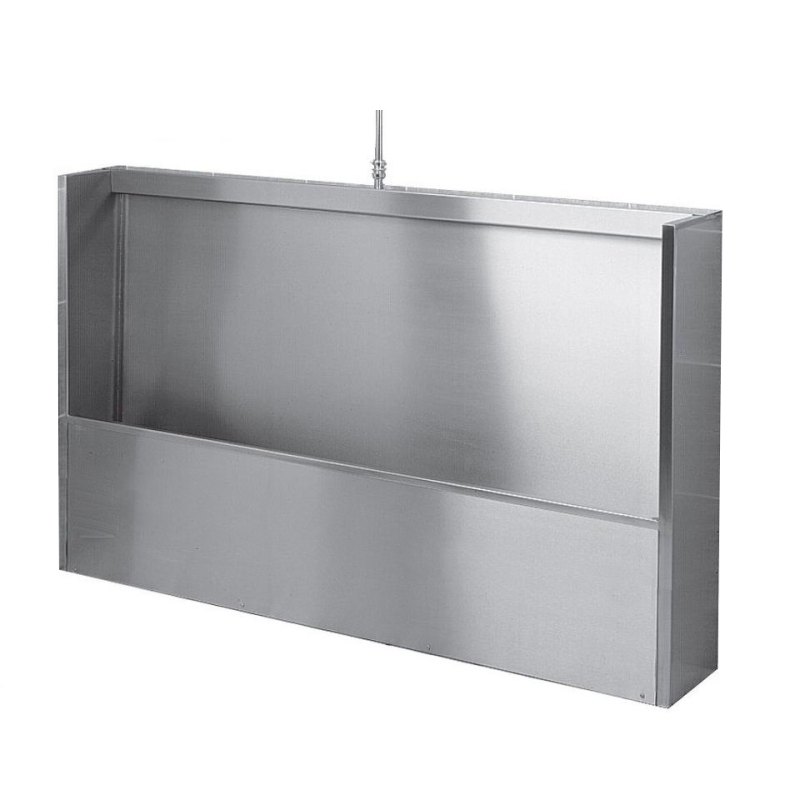

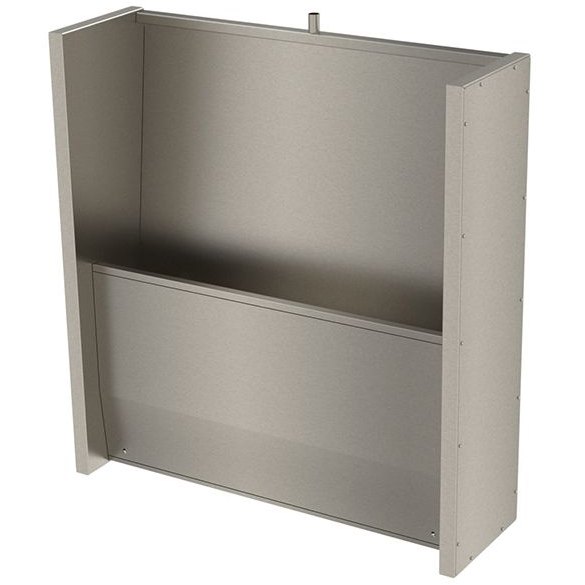

Our floor standing trough urinals are designed to last a lifetime. The hardwearing stainless steel construction is tough enough to withstand the rigours of school life, while the attractive satin polished finish makes them a stylish addition to any modern school washroom. Each unit also comes with a matching plastic auto-flushing cistern absolutely free.

These floor standing trough urinals are available in five standard sizes, but we can also provide bespoke units to suit the requirements of your school, college or sixth form. Each unit has a removable access panel beneath the trough to protect the underlying pipework. The 38mm centre waste fitting.

Delivery

Made to order, usually 5 to 6 working weeks.

Tech specs

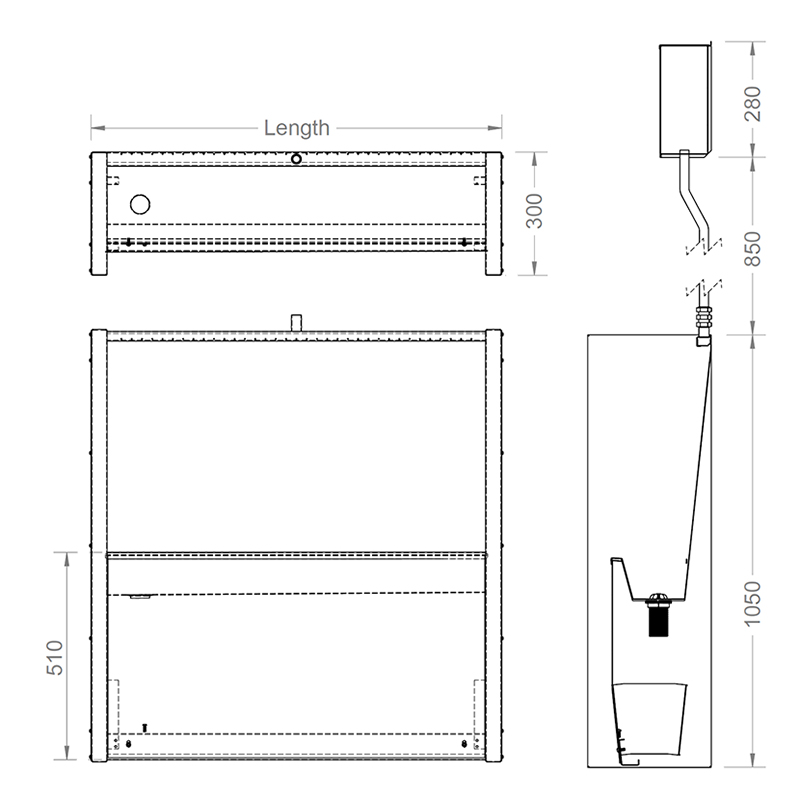

Material: 1.2mm-thick stainless steel (304 grade), satin finish
Five standard lengths: 1200mm, 1500mm, 1800mm, 2000mm and 2400mm (or bespoke up to 3300mm)
Depth (front to back): 340mm
Height (top to bottom): 1050mm
Waste fitting: 38mm Centre waste
Cistern dimensions:
Width: 453mm
Depth (front to back): 124mm
Height (top to bottom): 274mm
Downpipe: 855mm

Each floor standing trough urinal is fitted with a top entry downpipe connection; however, if you wish to use the unit with a concealed downpipe and cistern, they can be supplied with a rear entry connection instead.

Extras

Each floor standing stainless steel trough urinal is compatible with the following extras:
Flush controller
Marnic Water Watch

Related products

You may also be interested in our heavy duty floor standing slab urinals and wall hung vandal resistant trough urinals. Once you’ve decided on a urinal, why not complete your washroom suite with a stainless steel toilet and stainless steel trough sink?
In addition to stainless washroom fittings, we also sell hydration products including stainless steel drinking fountains and stainless steel bottle fillers. To view our full range of stainless steel school fixtures, click here.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

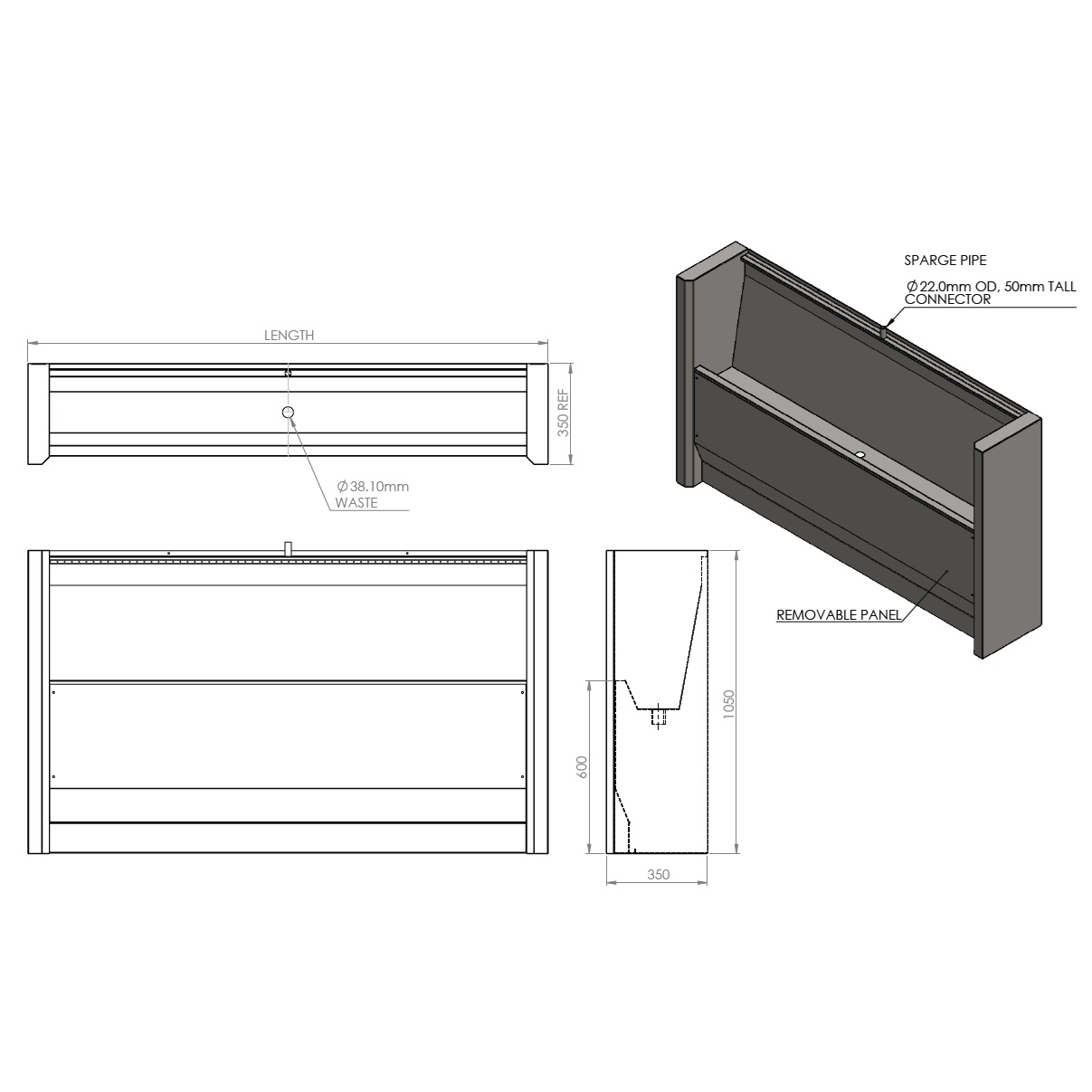

fstu-dims











Delivery

Made to order, usually 5 to 6 working weeks.

Delivery Times

Delivery times stated on the website are indicative of the average time it takes to deliver each product. All delivery times are based on working days and do not include weekends or Bank Holidays.
For remote areas, sometimes deliveries may take a little longer than specified.
We will contact you if there are any known delays in the delivery times on your order.

Delivery Method

All orders are despatched by the most suitable and economical method.
If you have ordered several items, they may arrive separately to make sure they are delivered by the quickest and most appropriate method, and to guarantee you get the best prices.
Please note, our carriers do not offer fixed time slots, and due to time constraints are not able to telephone before delivering.

Architectural Specification Text

The following specification wording is provided for architects, consultants and building specifiers to copy into building specifications, schedules of work and project documentation. It includes the product reference, materials, dimensions and applicable standards.

Floor Standing Stainless Steel Trough Urinal - FSTU

Uniclass: Pr_40_20_93 - Urinals

Product Specification

1. Description: Floor standing stainless steel communal trough urinal with automatic cistern flushing system, designed for commercial, industrial and public washrooms.

2. Supplier: Washware Essentials Ltd.

3. Contact details:
3.1. Telephone: 01275 400456
3.2. Website: www.washwareessentials.co.uk

4. Product reference: FSTU.

5. Form: Floor standing communal trough urinal with raised trough channel, integral end panels, horizontal sparge pipe flushing system, removable front access panel beneath the trough and centrally positioned waste outlet.

6. Materials:
6.1. Urinal material: Grade 304 stainless steel.
6.2. Material thickness: 1.2mm.
6.3. Finish: Satin polished stainless steel.

7. Dimensions:
7.1. Standard lengths: 1200mm, 1500mm, 1800mm, 2000mm, 2400mm, 2700mm, 3000mm or 3300mm, as specified.
7.2. Maximum single-piece length: 3300mm.
7.3. Overall urinal height: 1050mm.
7.4. Front-to-back projection: 300mm.
7.5. Special sizes: Purpose-made lengths available to project requirements.
7.6. Alternative arrangements: L-shaped or U-shaped configurations available by special order, incorporating multiple sections and infill panels.

8. Waste outlet:
8.1. Outlet position: Centrally positioned.
8.2. Waste size: 38mm.
8.3. Waste fitting: Supplied as part of the urinal assembly.
8.4. Waste connection: Accessible behind removable front panel.

9. Mounting: Floor standing installation against a suitable wall or walls, with appropriate structural support and fixing in accordance with the supplier's installation requirements. End panels suitable for installation against adjoining walls or leaving exposed.

10. Flushing cistern:
10.1. Standard cistern: Exposed plastic automatic flushing cistern.
10.2. Cistern dimensions: 455mm long x 126mm front-to-back x 282mm high.
10.3. Standard configuration: Top entry flushing connection with exposed stainless steel downpipe.
10.4. Alternative configuration: Back entry connection with concealed cistern and downpipe, available as an option.

11. Flushing system:
11.1. Distribution: Vandal-resistant square horizontal sparge pipe flushing system.
11.2. Standard operation: Automatic cistern flushing arrangement.
11.3. Optional controls: Marnic Water Watch urinal flush controller where specified.
11.4. Maintenance access: Removable front access panel beneath trough providing access to concealed waste pipework and services.

12. Installation: Install in accordance with the supplier's installation instructions and project requirements. Provide suitable floor and wall support, water supply, central waste connection and access for servicing. Confirm the selected flushing arrangement and actual product dimensions before installation. For special L-shaped or U-shaped arrangements, confirm the configuration, jointing and infill panel requirements with the supplier before manufacture.

13. Applicable standards: Manufactured from Grade 304 stainless steel, 1.2mm thick. No specific BS EN product standard has been identified for this floor-standing trough urinal configuration. Installation and associated water supply and drainage systems to comply with applicable UK regulations and relevant British Standards.
