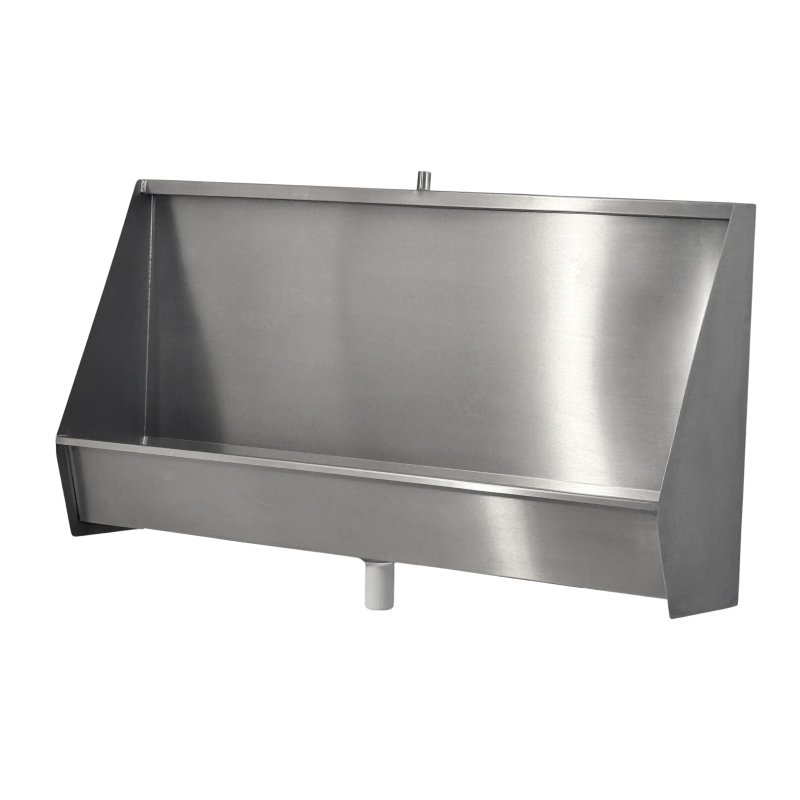

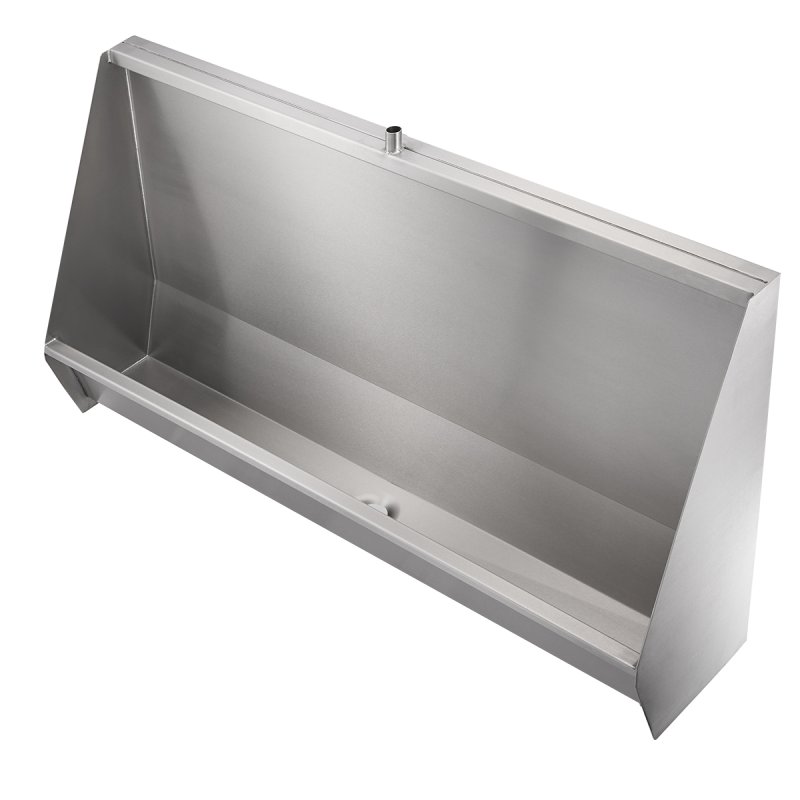

Classic Stainless Steel Wall Hung Urinals 900mm To 2400mm Long
Product Code: WPUC
Purpose made lengths up to 3000mm long manufactured to order.
Installation InstructionsDescription
Our stainless steel large standard wall-mounted trough urinal is the ideal solution for high-traffic school washrooms and commercial environments. Built from durable grade 304 stainless steel with a brushed satin finish, this hygienic and vandal-resistant urinal offers a long-lasting, low-maintenance alternative to traditional ceramic bowls.
With a taller height of 615mm and a 251mm projection, this larger standard urinal is perfect for replacing older or oversized models in primary schools, secondary schools, colleges, and public facilities. It’s designed to withstand heavy daily use while maintaining a clean, modern look.
Each unit is supplied pre-drilled for easy wall fixing, and includes a white plastic auto-flushing cistern and stainless steel downpipe – delivering excellent value for money. The wall-hung design allows for installation at a pupil-appropriate height, making these urinals suitable for a wide age range.
Delivery
Standard lengths: 900mm, 1200mm, 1500mm, 1800mm, 2000mm, and 2400mm with centre outlet, and top entry flush pipe connections
Typically 1 to 2 working days
Non standard lengths, back entry flushpipe connection urinals
Typically 15 to 20 working days
Tech specs
Material: 1.2mm-thick stainless steel with satin finish body, 2mm thick ends
Six standard lengths: 900mm, 1200mm, 1500mm, 1800mm, 2000mm and 2400mm
Depth (front to back): 251mm
Height (top to bottom): 615mm
Waste fitting: 38mm plastic dome grated in centre
Cistern: white plastic auto cistern
Downpipe: 725mm long, 22mm diameter
Each stainless steel trough urinal comes with a top entry downpipe connection as standard; alternatively, they can be supplied with a rear entry connection for use with a concealed cistern and downpipe for a small supplementary charge.
Extras
Your stainless steel trough urinal can also be supplied with any of the following accessories:
Traps
Plastic bottle trap (38mm)
Brass bottle trap, chrome-plated with chrome flange and waste pipe (38mm)
Covers
Stainless steel trap covers
Flush controller
Marnic Water Watch
Related products
Why not complete your school washroom with one of our stainless steel toilets? or alternatively visit our school toilets page to see the white china range.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

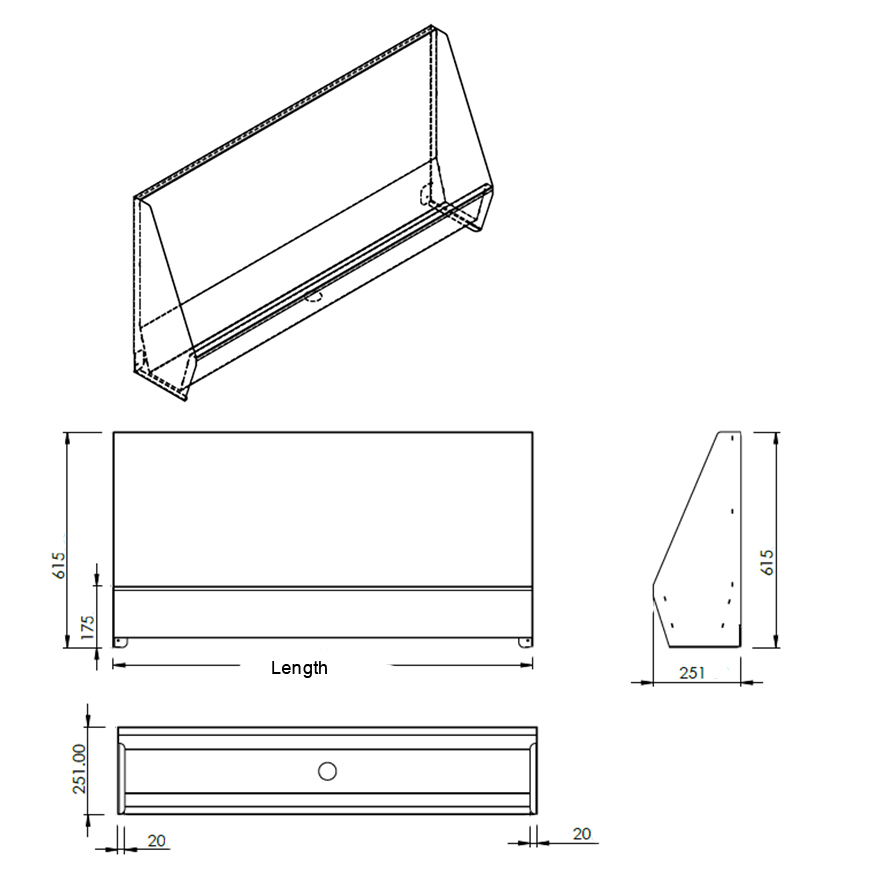

Dimensions
